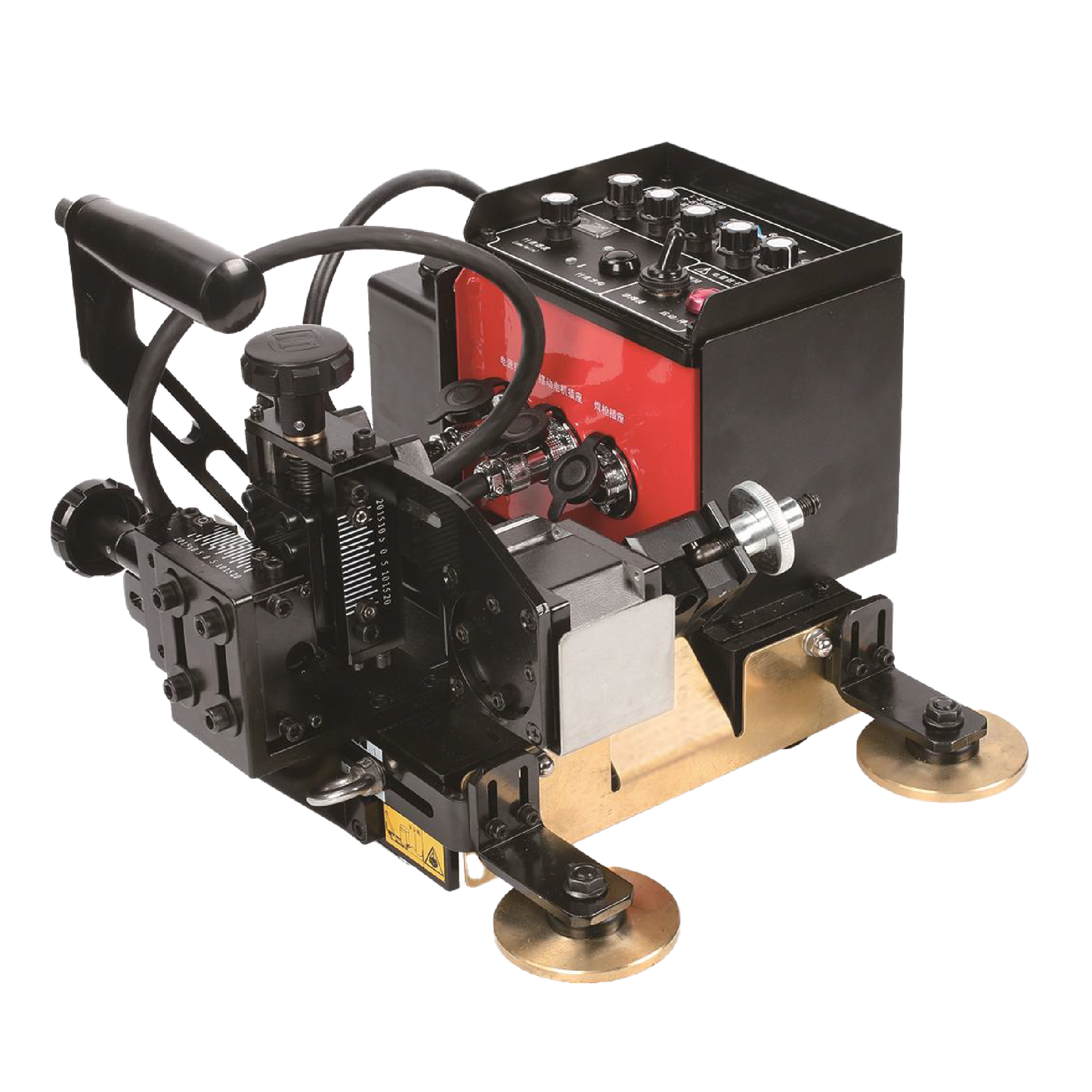

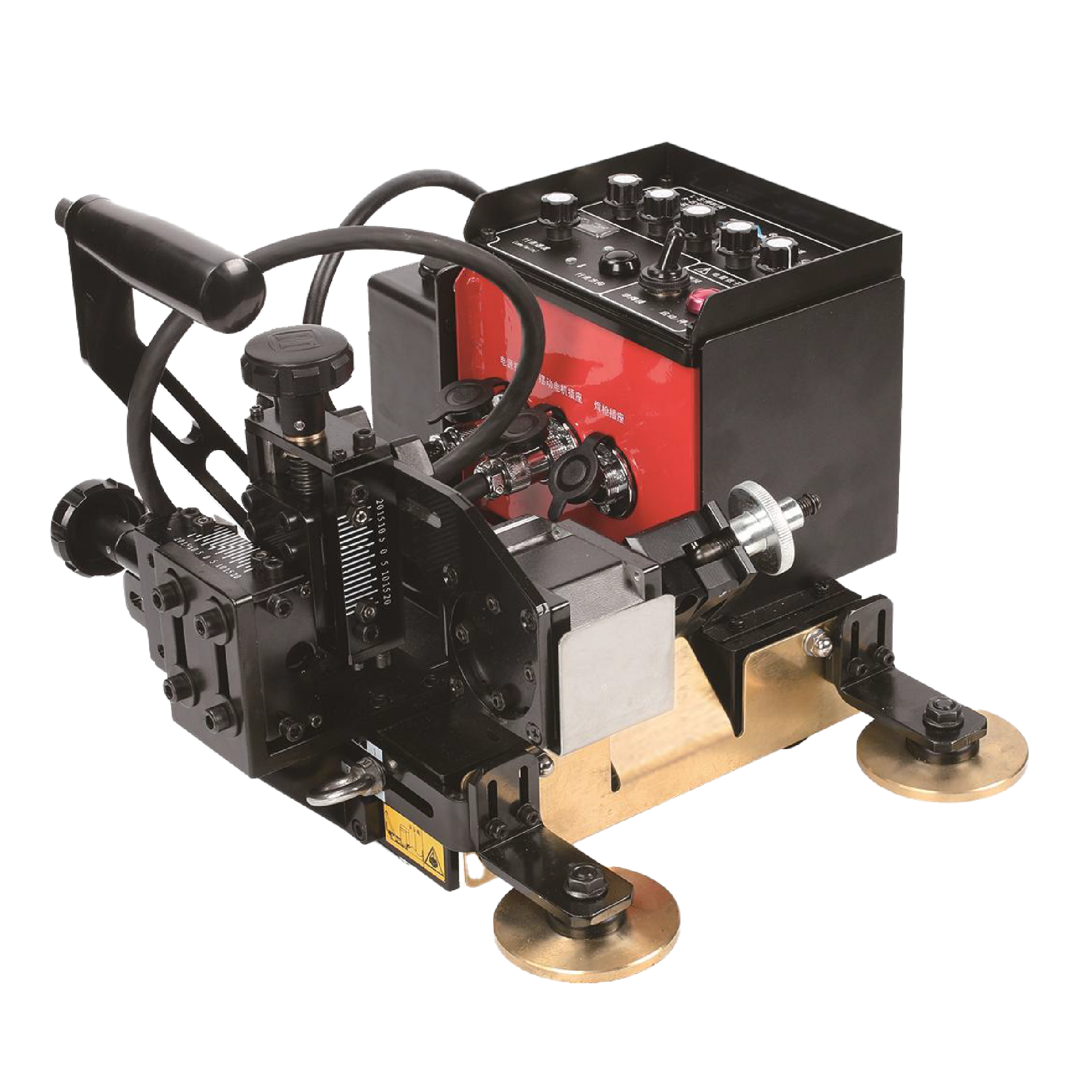

HCD500-6 Automatic Welding Carriage
HCD500-6 Automatic Welding Carriage

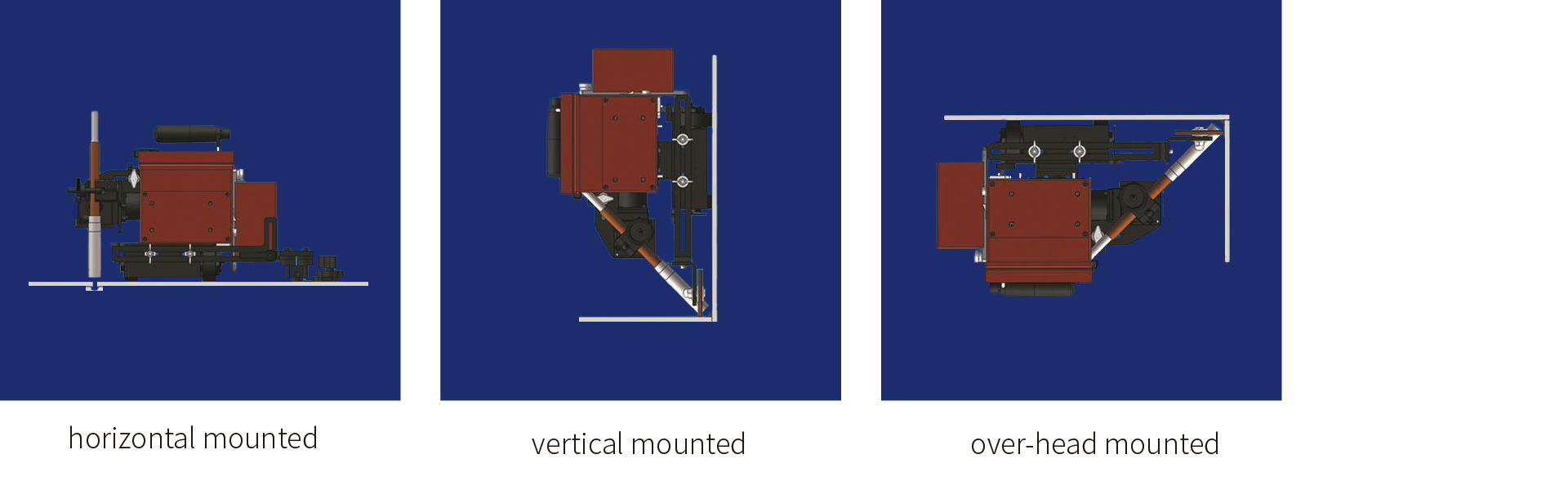

HCD500-6 is a multi-function welding machine for flat fillet welding, flat butt joint, horizontal butt joint, vertical butt joint and overhead welding.
Features
- Powered by a lithium battery, no external power supply is required.
- Angle adjustment function enables adjustment of the torch angle during welding process for buildup or drag operation.
- Smooth oscillation mechanism enables accurate movement of the torch.
- Magnetic device activated by a clutch handle for easy installation and adjustment.
- Powerful magnet provides stability in welding operation.

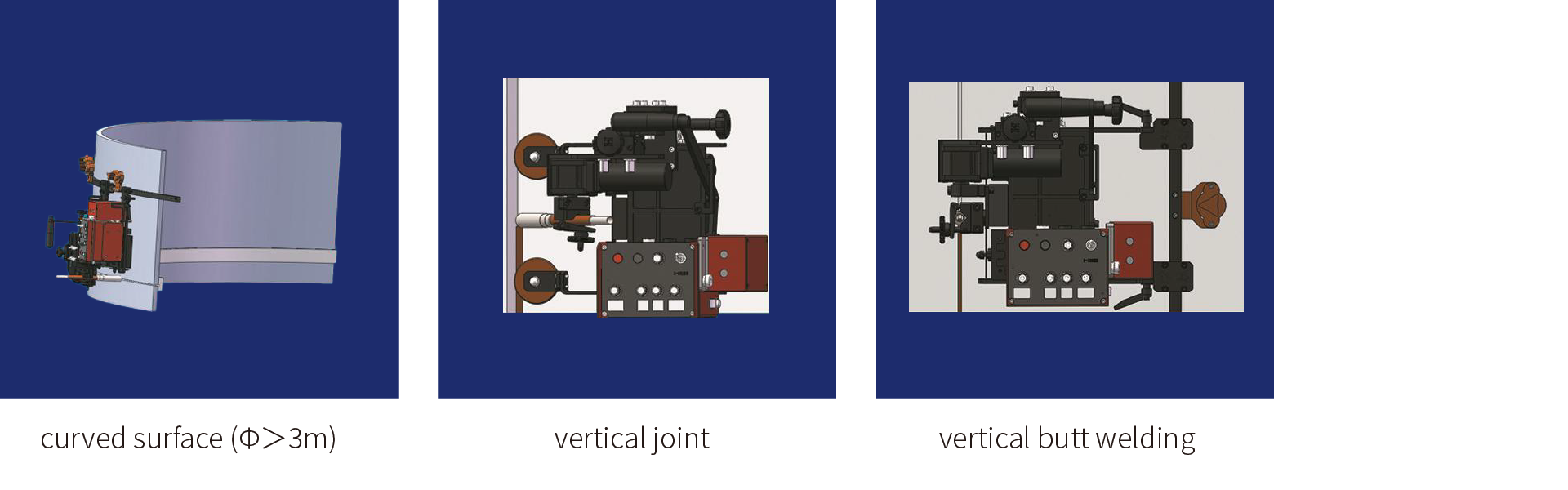

- Soft or hard rails are available for out-of-position welding operation such as on vertical or curved surface.
Specification
|
Weight |
12kg |
|
Input Voltage |
24V/4AH Lithium battery |
|
Drive Mode |
Four-wheel drive |
|
Traction Power |
32kg |
|
Travel Speed |
35-930(mm/min) |
|
Track Type |
Guide wheel |
|
|
Guide rail |
|
Torch Position Adjustment |
Rotate around the X axis ±45° |
|
|
Rotate around the Y axis ±30° |
|
|
Lateral movement 20mm |
|
|
Vertical movement 20mm |
|
Oscillation Parameters |
Oscillation angle 0 - ±8° |
|
|
Max oscillation speed 0 - 40 rpm |
|
|
Pause duration (both ends) 0 - 2.5s |
|
Torch |
Curved or straight torch |
|
Un-weldable Distance |
Front 150mm; Rear 146mm |
|
Dimension (LxWxH) |
314mm x 195mm x 242mm |
