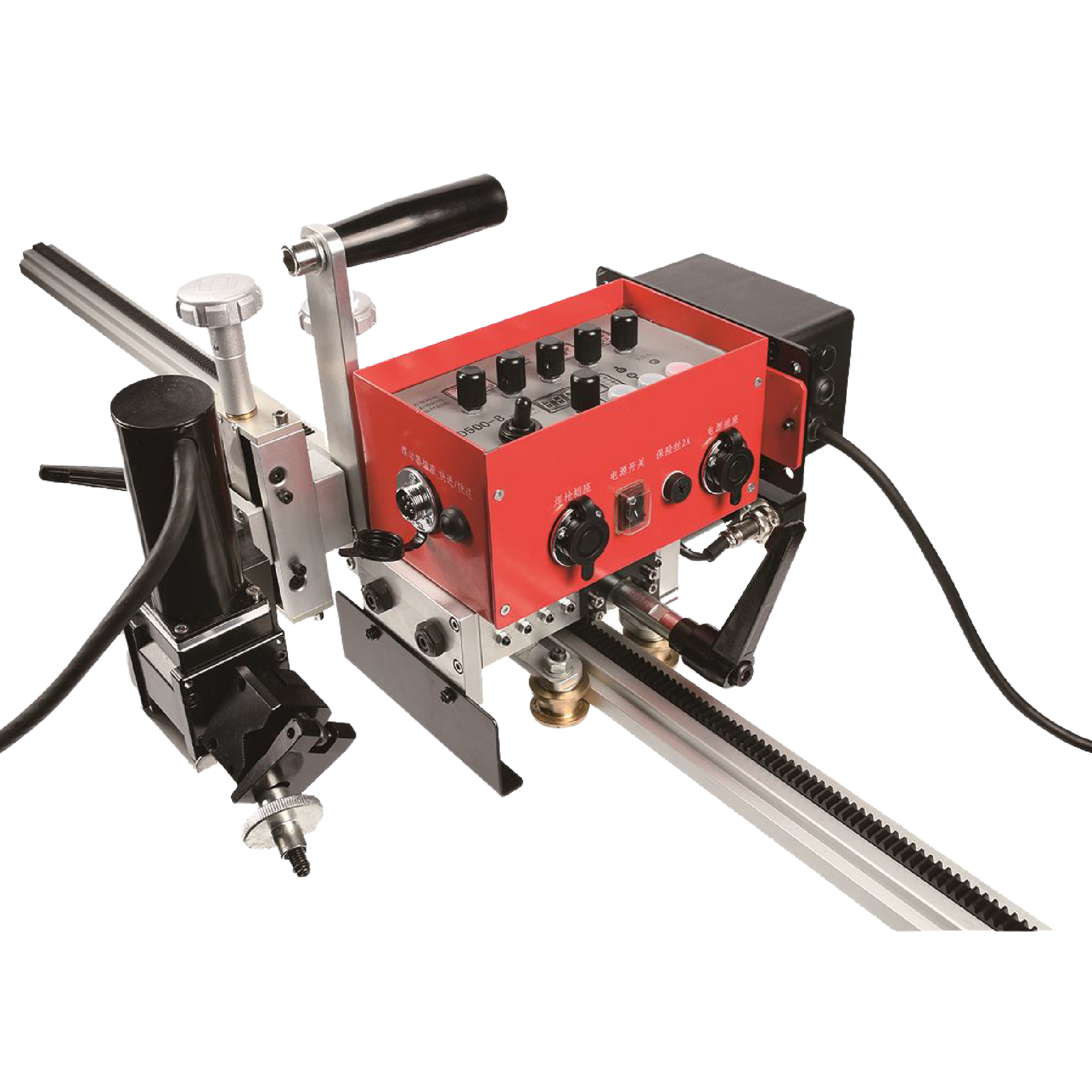

HCD500-8 Automatic Welding Carriage
HCD500-8 Automatic Welding Carriage

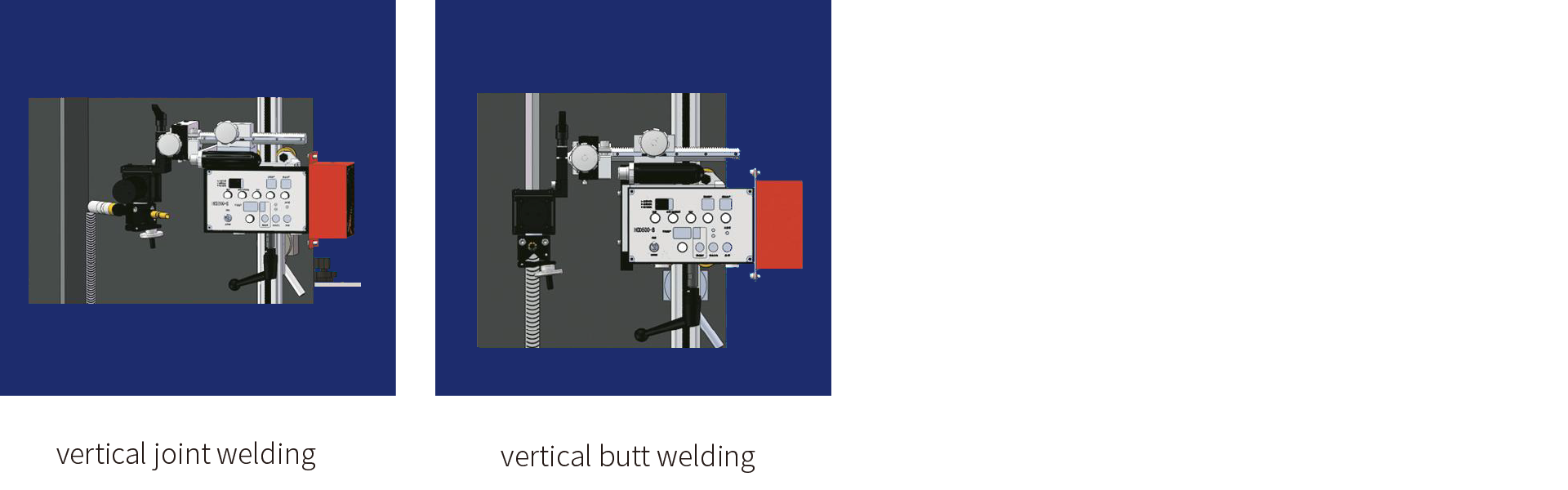

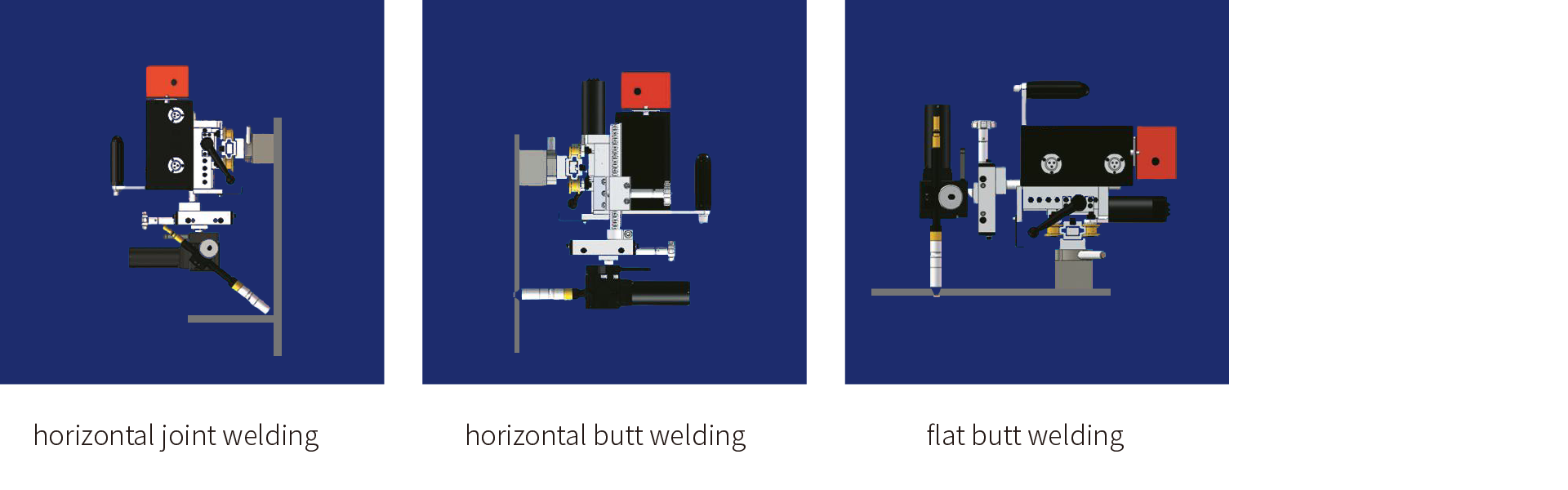

HCD500-8 is wildly used in applications such as flat butt joint, vertical butt joints and horizontal butt welding, especially in welding operation of thick plates.
Features
- Compact design, light and easy to move and use.
- Walking speed, oscillation speed, oscillation angle, and pause duration are controlled by built-in program.
- Standard rail is 1.5m long. Other lengths are also available upon request.
Specification
|
Weight |
Carriage 9kg; Rail 5.6kg |
|
Input Voltage |
24V/4AH Lithium battery |
|
Drive Mode |
Rack and pinion |
|
Traction Power |
200kg |
|
Travel Speed |
35-950(mm/min) |
|
Track Type |
Guide rail |
|
Torch Position Adjustment |
Rotate around the X axis ±45° |
|
|
Rotate around the Y axis ±30° |
|
|
Lateral movement 70mm |
|
|
Vertical movement 110mm |
|
Oscillation Parameters |
Oscillation angle 0 - ±8° |
|
|
Max Oscillation speed 0 - 40 rpm |
|
|
Pause duration (both ends) 0 - 2.5s |
|
Torch |
Bend torch or straight torch |
|
Dimension (LxWxH) |
375mm x 295mm x 270mm |
