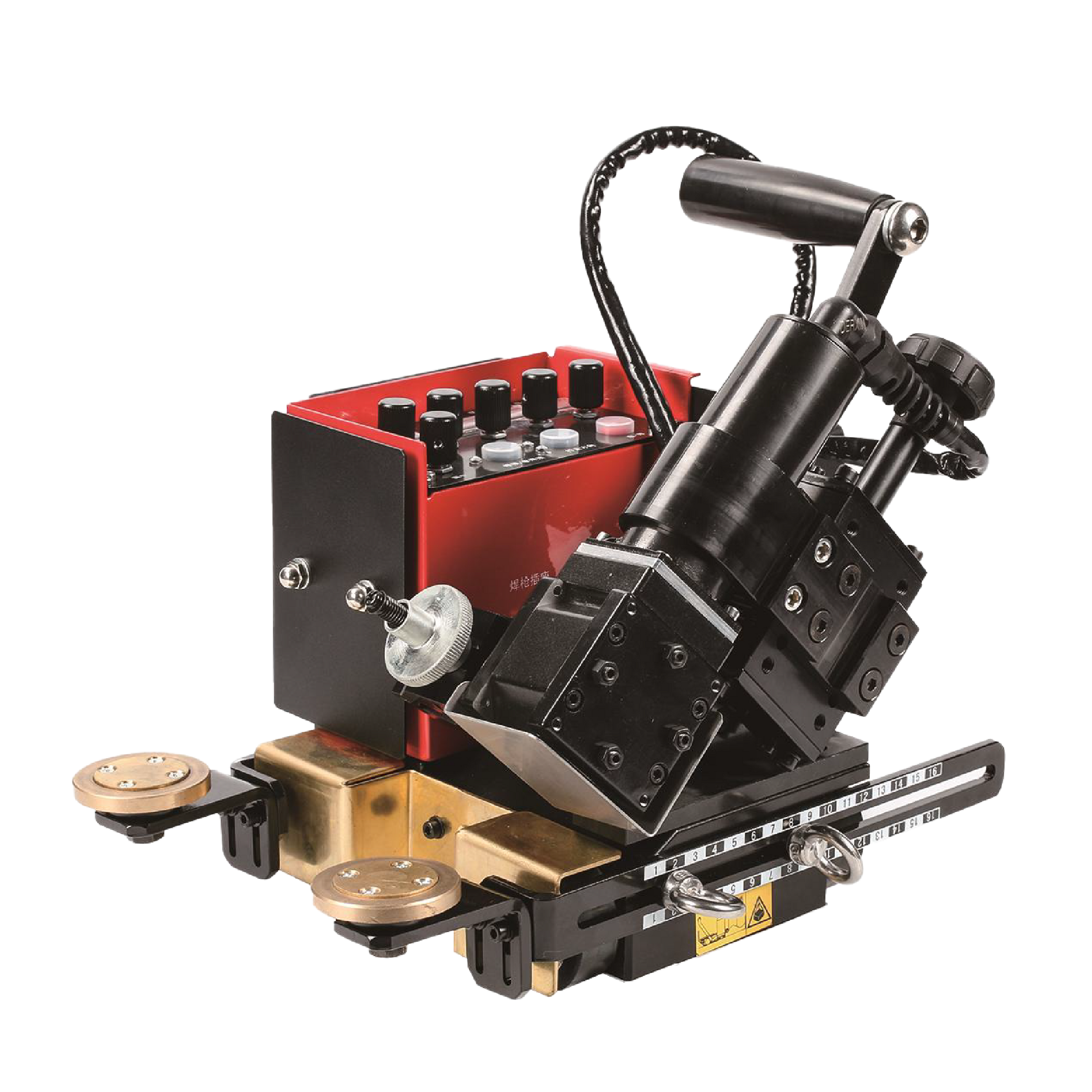

HCD500-9 Automatic Welding Carriage
HCD500-9 Automatic Welding Carriage

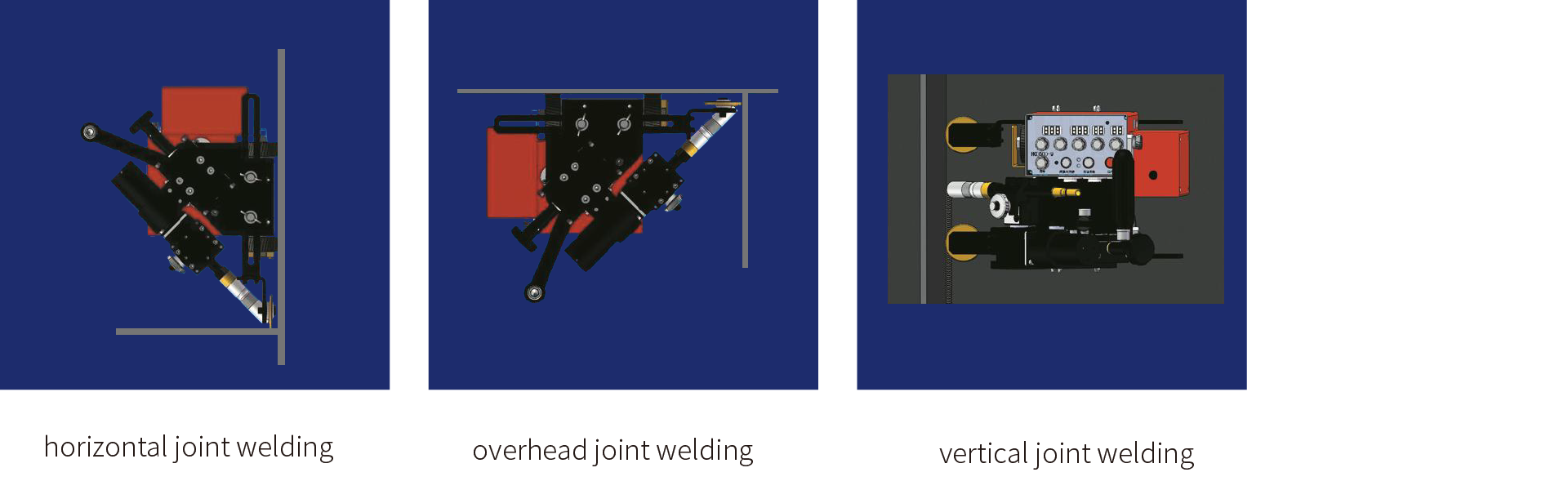

HCD500-9 is an economical choice for welding operation of vertical fillet and horizontal overhead welding.
Features
- Small in size and light in weight.
- Digital display and easy to operate.
- Multiple installation angle for the torch.
- Powered by a lithium battery that enables 10 hours of continuous operation, no external power supply is required.
- Magnetic device activated by a clutch handle for easy installation and adjustment.
- Walking speed, oscillation speed, oscillation angle, and pause duration are controlled by built-in program.
Specification
|
Weight |
10kg |
|
Input Voltage |
24V/4AH Lithium battery |
|
Drive Mode |
Four-wheel drive |
|
Traction Power |
32kg |
|
Travel Speed |
35-930(mm/min) |
|
Track Type |
Contour guide wheel |
|
Torch Position Adjustment |
40mm at 45° angle |
|
|
Rotate around the X axis ±8° |
|
Oscillation Parameters |
Oscillation angle 0 - ±8°Max |
|
|
Oscillation speed 0 - 40 rpm |
|
|
Pause duration (both ends) 0 - 2.5s |
|
Arc Suppression Delay Time |
0 - 2.5s |
|
Torch |
Bend torch or straight torch |
|
Dimension (LxWxH) |
270mm x 230mm x 270mm |
