KLS-GFC-3T Cutting and Beveling Machine for thick plate up to 80mm

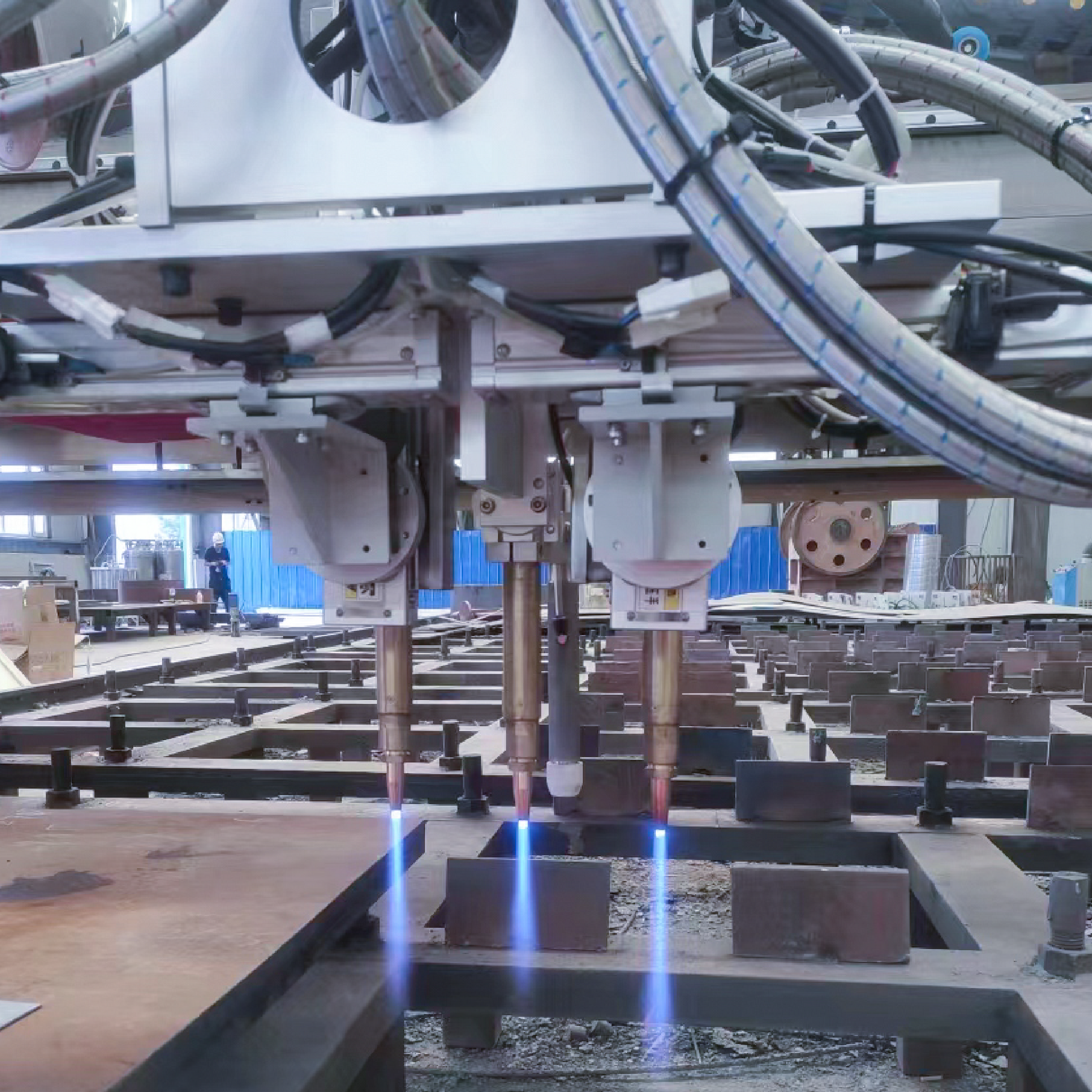

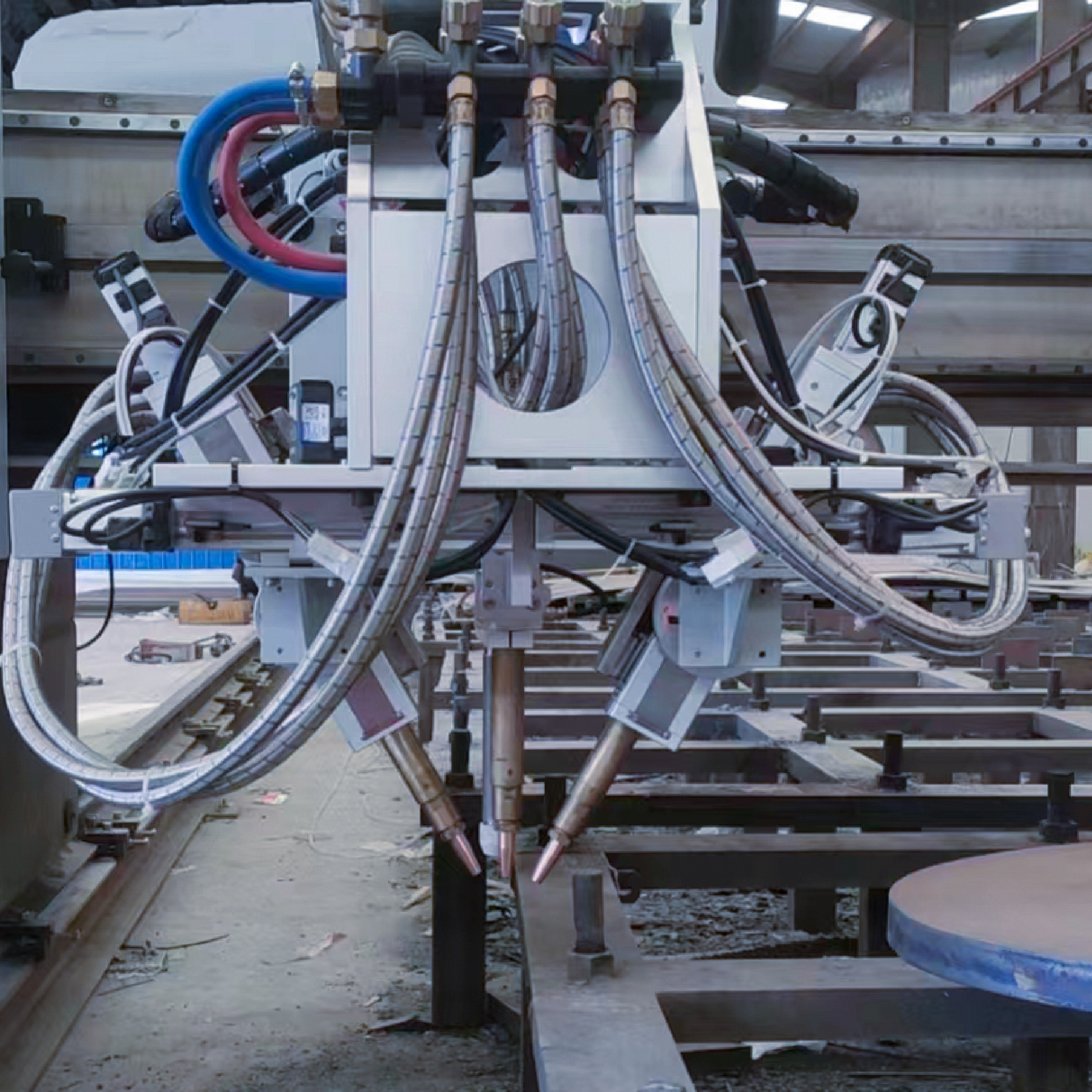

Beveling Machine specially designed and engineered for thick plate up to 80 mm. Three-oxyfuel-torches module enables quick and accurate beveling with top-quality results in just one go.



Features

- Complete bevel process (K/Y/V/K Cut) in one go

- Digital display of cutting data

- Cutting accuracy within ±1mm

- Laser adjuster for height adjustment

- Analogue adjustment module

- Automatic adjustment of three torches for bevel process

- Automatic positioning of each individual torch

- Swirling module to avoid wire entanglement

- Anticollision system

- Autosave in case of accidental outage

- Supports MES and OPC UA communication

- Supports Ethernet/4G/wi-fi connection

- Supports remote control and remote diagnose

- KLS smart nesting software



Specification



Rail length	4000-12000mm
Cutting length	rail length-3000mm

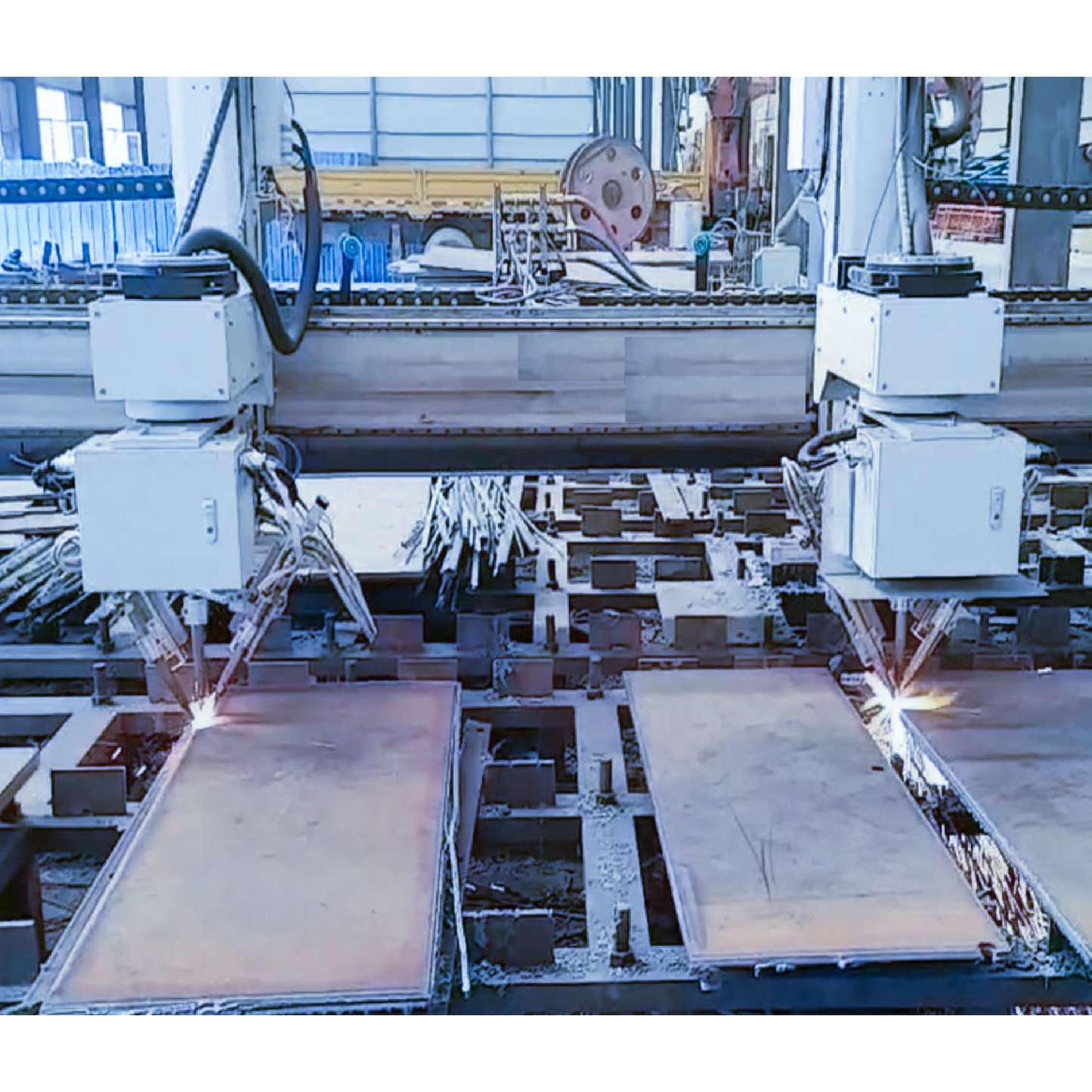

Min. space between torch modules	1000mm
Cutting thickness	20-80mm
Cutting speed	50-450mm/min
Gas	Oxygen-Propane
Machine overall dimension	rail length x 3000mm x 2500mm

*For plate thickness over 80mm, and other specific requirements, please contact us for more information.
